The Moreside Fixture

The Moreside FixtureThe Moreside FixtureThe Moreside Fixture

Made in the USA by DS Machine Werks, LLC

Made in the USA by DS Machine Werks, LLCMade in the USA by DS Machine Werks, LLCMade in the USA by DS Machine Werks, LLC

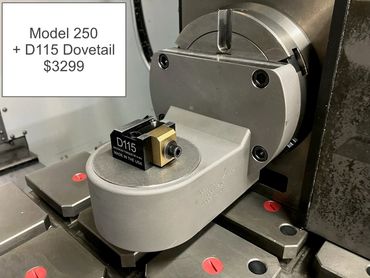

Model 250

Video

Check out this great video

Description

Details

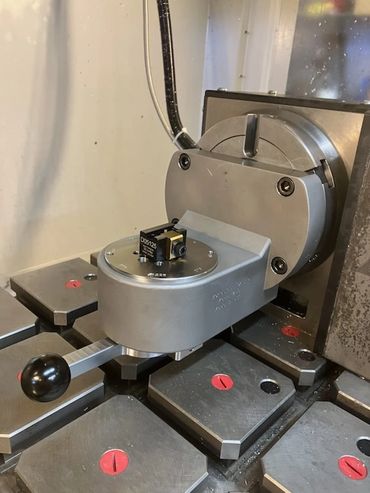

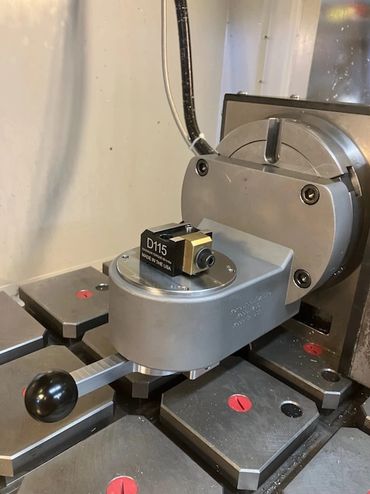

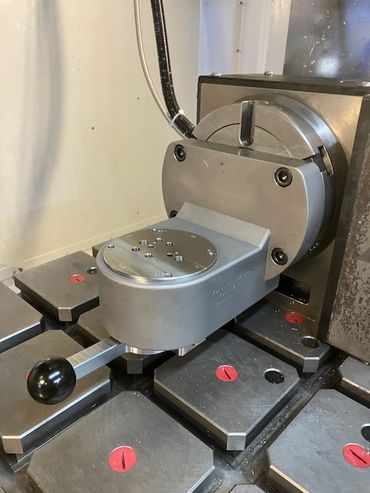

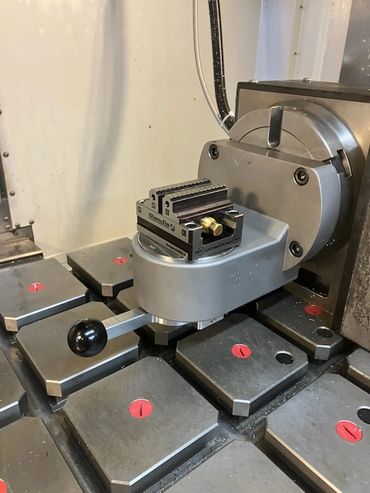

The Model 250 will quickly mount and set up on your 4th axis giving you 5 axis indexing to all sides with 1 axis being manually indexed. The fixture is sealed against coolant and chips and will index at 45-degree increments. It comes standard with a Flat patter that is drilled for the D115 and D05125 fixture that are sold separately. Other options include the DSM double dovetail fixture that is symmetric and simple in design to easily center your stock material. The bottom of your stock is at center line of the 4th axis keeping it low and rigid. Perfect for parts up to 4 1/2" cubed. Also available is a DianJin self-centering vise. I never thought I would sell something that was not made in the USA but this little vise is perfect for a Model 250 fixture.
